Ram 1500 Wheel Visualizer
See wheels on your own Ram 1500 before you buy — upload a photo, pick real aftermarket wheels, and get a photoreal render in about ten seconds.
How it works on your Ram 1500

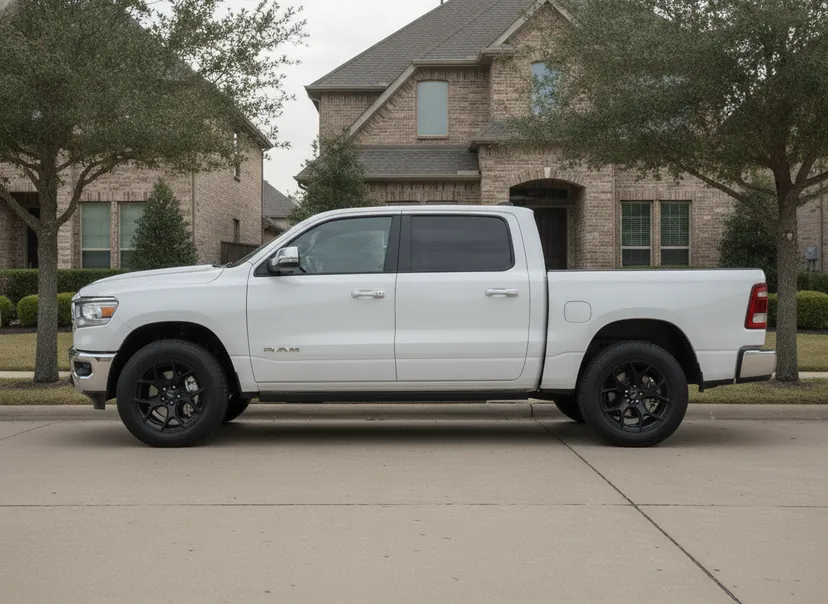

Drag the line. Actual WheelPeek output: an AI-generated demo Ram 1500 re-rendered with Vossen HF6-4 in Satin Black — the same ten-second pipeline that runs on a photo of your own truck.
A truck is one of the hardest vehicles to judge from a catalog photo, and the Ram adds a twist: the same-year truck can be two different platforms on two different bolt patterns. WheelPeek works with photos of any Ram 1500, and you don't need a VIN or a trim code to start:
- Add a photo of your truck. Open the free beta and snap or import a shot of your Ram — a clean side or front three-quarter angle in even light renders best. Not parked next to it? Generate a demo vehicle and experiment first.
- Let the AI read it. It identifies the make, model, bolt pattern and OEM wheel sizes from the photo, so it can tell a 6-lug
6x139.7DT from a 5-lug5x139.7Classic before you pick a single wheel. - Pick real wheels and render. Browse 650+ real wheels from 21 brands with FITS badges flagging what matches your truck's pattern and sizes, then tap: a photoreal HD image replaces your photo in about ten seconds.
- Compare, then decide. Heart your favorites and line them up on a 2×2 or 3×3 comparison sheet — same truck, same angle, only the wheels change — or share a numbered voting card so friends can reply with a number.
Ram 1500 wheel specs & fitment
| Generation | Bolt pattern | Center bore | OEM wheel sizes | Typical OEM tire sizes |
|---|---|---|---|---|
| DS — 4th gen (2009–2018) & "Ram 1500 Classic" (2019–~2024) | 5x139.7 |
77.8 mm | 17×7, 18×8, 20×9 | 265/70R17, 275/60R20 |
| DT — 5th gen (2019+) | 6x139.7 |
77.8 mm | 18×8, 20×9, 22×9 | 275/65R18, 275/55R20, 285/45R22 |
Check your lug count first. The 2019+ DT is a 6-lug 6x139.7 truck; the older DS body — sold as the "Ram 1500 Classic" alongside the DT through roughly 2024 — is a 5-lug 5x139.7 truck. A single model year can be either one, so a five-lug wheel and a six-lug wheel are not interchangeable no matter what the year says. Count the studs before you shop.
Once you know which body you have, the rest is straightforward. The DT (2019 and up) is the modern truck: coil-sprung or air-suspension, 6x139.7, factory wheels from 18 up to 22 inches, and a 77.8 mm center bore. The DS — the 2009–2018 fourth-gen truck, and the near-identical Ram 1500 Classic that stayed in showrooms next to the DT until about 2024 — is 5x139.7 on the same 77.8 mm bore. Both use M14x1.5 lug nuts. The center bore being shared is a coincidence that trips people up: it does not mean the wheels swap, because the lug count is different.
One more note on the 6-lug DT pattern: 6x139.7 is a widely used truck pattern shared with the Silverado and Sierra 1500, the Tacoma, the 4Runner and others, so the aftermarket selection is deep — but the center bore and load rating still have to match a full-size Ram, so don't assume a wheel built for a different 6x139.7 truck is a drop-in.
Honest note: these fitment specs are estimates compiled from manufacturer and published data, and they vary by trim, model year, body (DT vs DS/Classic) and market. Always verify bolt pattern, offset, width and brake clearance with the seller or manufacturer before ordering.
Popular Ram 1500 setups and looks
The Ram leans more upscale than most half-tons, and its wheel trends reflect that as much as the off-road scene:
- The 20 is the sweet spot. A 20-inch wheel with a 33-inch-class tire on a mild level is the balanced choice — presence without giving up all the ride quality the Ram is known for.
- 22s are the luxury look. Limited and Longhorn trucks come on 22s, and the aftermarket versions suit a stock-height or lowered truck — at the cost of sidewall and ride, which is why some owners step back down to 20s.
- 18s for the working and off-road trucks. More sidewall, better all-terrain selection and a cheaper set to replace — the choice for trucks that see gravel or a load.
- Finish splits by trim. Satin black and gunmetal suit Rebel and Sport trucks; polished and machined faces flatter the chrome-heavy Laramie and Longhorn. Bronze is the current crossover favorite.
- Air suspension changes the math. On air-equipped DT trucks, ride height moves, so confirm clearance across the full range of travel rather than at one setting.
Two things owners learn late: a taller tire reads your speedometer optimistically until it's recalibrated, and a second set of wheels needs its own TPMS sensors unless you swap them over every time.
Wheels in the catalog
The catalog holds 650+ real aftermarket wheels from 21 brands, each with the manufacturer's own specs rather than a generic 3D model. On the Ram side that includes Method Race Wheels and American Racing for the off-road and Rebel-style end, Rotiform and fifteen52 for cleaner monoblock faces, and Vossen and Blaque Diamond for the polished street-truck look that suits a Laramie or Longhorn.
We won't tell you from a web page that a specific wheel model fits your truck. Inside the app, FITS badges and the Decision Score run that check against the pattern and sizes detected on your actual Ram — 5-lug or 6-lug — including a brake-clearance rating, and even then, confirm load rating and offset with the seller before you order.
FAQ
Is the Ram 1500 a 5-lug or a 6-lug truck?
It depends entirely on which body you have, and this is the single most important thing to get right before you shop. The current fifth-generation truck, the DT, launched for 2019 and uses a 6x139.7 bolt pattern. The previous fourth-generation truck, the DS, built from 2009 to 2018, uses a 5x139.7 pattern — and Ram kept selling that older body alongside the new one as the Ram 1500 Classic all the way through about 2024. That means a 2019 through 2024 truck could be either pattern depending on whether it is the DT or the Classic. Count the lug nuts before you buy anything: five means the DS/Classic on 5x139.7, six means the DT. The center bore is about 77.8 mm on both, but a 5-lug wheel and a 6-lug wheel do not interchange.
How do I tell a Ram 1500 DT from a Ram 1500 Classic?
The quickest tell is the lug count — six lugs is the DT, five is the DS-based Classic. Beyond that, the DT has the newer body with the larger grille and the modern interior, while the Classic carries over the 2009 to 2018 styling and was sold as a cheaper option next to it. Both could appear on the same dealer lot in the same year, which is exactly why the two get confused. If you are shopping from a photo or a listing, don't trust the model year alone; confirm the body and the lug count, because your entire wheel search depends on which one you actually have.
What wheels and tires work with a leveling kit on a Ram 1500?
The DT rides on a coil-spring or optional air suspension rather than the torsion-bar front of the old trucks, so leveling is usually done with a strut spacer or, on air-equipped trucks, by adjusting ride height. On stock height most owners run the factory 18, 20 or 22-inch wheel with its matching tire. A modest level opens room for a slightly taller tire — many owners land around a 33-inch-class tire on a 20-inch wheel — but the air-suspension trucks in particular can be fussy about clearance at full stuff, so larger tires and lower offsets need checking against your specific setup. Treat published setups as starting points and confirm with your installer.
Will bigger wheels hurt the ride or fuel economy?
Usually a little of both, and on a truck the tire matters more than the rim. The 22-inch wheels on loaded Limited and Longhorn trucks look the part but trade away sidewall, and you feel it on broken pavement — one reason some owners actually step down to 20s for ride quality. Heavier all-terrain tires add weight and rolling resistance, which costs a little fuel economy and range. None of that makes the upgrade wrong; it just means overall diameter and load rating are worth confirming before you order, especially on a truck you tow or haul with.
Is it free, and does it work with my model year?
WheelPeek is free during the public beta, runs in your browser, and takes about ten seconds per render. It works with photos of any Ram 1500, whether it is a 6-lug DT or a 5-lug DS-based Classic, because the AI reads the make, model, bolt pattern and OEM wheel sizes out of the photo rather than asking you to pick a year and trim from a menu. If your truck is already leveled or running non-stock sizes, a custom fitment override lets you enter what you actually run — and it is worth confirming your lug count, since the DT and the Classic take different wheels.
